EMERGENCY STANDBY APPLICATIONS ONLY


Generator applications that ONLY operate upon the loss of a normal power source such as utility.



Our Reduced Price:$
View
View
View
View
View
View

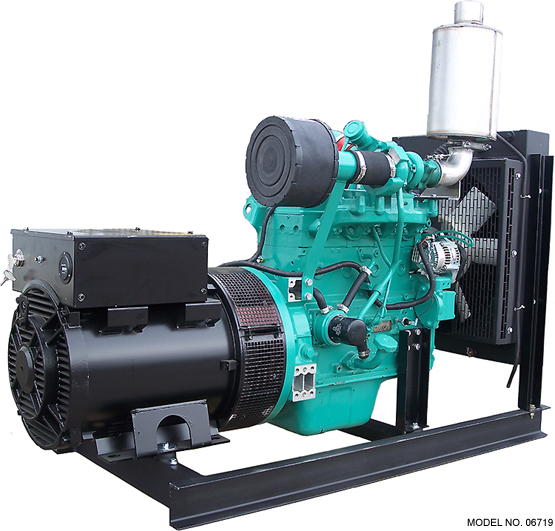

Cummins 60 kW Diesel Generator - This Cummins Powered diesel generator is suitable for continous use and has plenty of power to your home, job site or business. This unit operates at 1800 RPM and with its deep stiff crankcase, isolated valve cover and 4 point vibration mounts, this set runs smooth and quiet. This unit features a Cummins 3.3L in-line 4-cylinder turbocharged diesel engine, direct injection, cast iron crankcase with replaceable wet-type cylinder liners, full flow lube oil filteration, spin-on fuel filter with water seperator, brushless generator end (fan-cooled), solid state automatic voltage regulator for powering sensitive electronics, electronic fuel controller, extended 500-hour oil change and filter interval, single-side service points, liquid cooling, replaceable foam air filter element, heavy steel skid base, muffler for quiet operation, turn-key start and hour meter.



Options   Price
Two-Wire Auto Start + $799
1 Phase Generator End + $799
60 Gallon Fuel Tank + $2375
100 Gallon Fuel Tank + $2575
Sound Enclosure + $4395
Remote Monitoring with Gauge Panel + $1699






Generator
Automatic Voltage Regulation Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes - 1% regulation from no load to full load.
Power Single-Phase ---
Maximum Output 63,375 watts
Continous Output 60,000 watts
Load Amperage at 120 volts ---
Maximum Load 528 Amps
Continous Load 500 Amps
Load Amperage at 240 volts ---
Maximum Load 264 Amps
Continous Load 250 Amps
Sound Level 75 dB(A)




Engine
Model Cummins B3.3-G7
Type Direct Injection
Horsepower 90
Oil Capacity (w/ Oil Filter) 8.5 qts.
Operating RPM 1800
Cylinders 4
Cylinder Block Cast Iron Block w/ Cast Iron Sleeve
Bore & Stroke 3.74" x 4.53"
Exhaust Outlet 2.5" OD Muffler Outlet
Governor Electronic Governor
Cooling Liquid-Cooling
Coolant Capacity Approx. 6.5 Qts
Fuel No. 2 Diesel
Electric Fuel Pump 12 V - Standard
Starting System Electric




Consumption
Consumption at 1/2 load 2.5 gallons/hour
Consumption at 3/4 load 3.1 gallons/hour
Consumption at full load 4.2 gallons/hour



Control Panel
Key Start Standard
Hour Meter Standard
Circuit Breaker 10 Amps - Resetable



Installation Data
Fuel Inlet Hose Size 3/8"
Fuel Return Hose Size 5/16"
Minimum Power Lead Size 3/0 AWG
No. Power Lead Conductors 4
Exhaust Outlet 2.5" OD Muffler Outlet
Coolant Recommendation Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions
(L x D x H)
22-3/4" x 9-1/2" x 24"
Fuel Inlet & Return Location
(Facing Radiator)
Left-Side
Exhaust Direction
(Facing Radiator)
Left-Side
Power Output Location (Facing Radiator) Back-Side
Service Points
(Facing Radiator)
Oil Fill: Left-Side
Oil Drain:Left-Side
Air Filter: Left-Side
Oil Filter: Left-Side
Fuel Filter: Left-Side
Battery Type 12 VDC - 575 CCA - Not Included
Engine Oil Type SAE 15W-40




Warranty
Worldwide Support Network 4,000 Service Locations
Engine Warranty 2 Years
Generator Warranty 1 Year
100% Coverage for Parts & Labor Standard




Dimensions
Length 70 inches
Width 30 inches
Height 47 inches
Dry weight 2450 lbs
