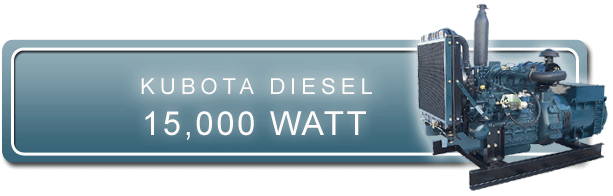

Kubota 15 kW Diesel Generator

Visit my Store  12,000 Watt | 15,000 Watt | 21,000 Watt

Our Reduced Price:$
View
View
View
View
View
View



Kubota 15 kW Diesel Generator - This Kubota KB1500 diesel generator is suitable for continous use and has plenty of power to run your home, job site or business. This unit operates at 1800 RPM and with its super quiet muffler and 4 point vibration mounts, the KB1500 runs smooth and quiet.

Like all Central Maine Diesel generators, this unit is fully customizable. From enclosure to fuel tank to controls to trailer, you choose the option that is right for you! And, as an added benefit, you will always have the flexibility to upgrade options later.

This unit features a Kubota V1703MBG 3 cylinder diesel engine, brushless generator end, liquid cooling, automatic voltage regulation, muffler, safety shutdowns, replaceable foam air filter elemant, steel skid base and key start panel.

55 GALLON DRUM
FUEL TANK KIT




Options   Price
55 Gallon Fuel Drum Kit + $195
Block Heater + $195
Sound Enclosure + $3275
Two-Wire Auto Start + $799
60 Gallon Subbase Fuel Tank + $2375
100 Gallon Subbase Fuel Tank + $2575
200 Amp Automatic Transfer Switch + $1995





Model Number 05515
Electrical Specifications -
Maximum Output 15,000 watts
Continous Output 13,750 watts
Power Single-Phase ---
Maximum Load 125 Amps
Continous Load 114.5 Amps
Load Amperage at 240 volts ---
Maximum Load 62.5 Amps
Continous Load 57.2 Amps




Model Number 05515
3 Phase Output Optional
Automatic Voltage Regulation Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes - 1% regulation from no load to full load.
Maximum Output 15000
Continous Output 13750
Load Amperage at 120 volts---
Maximum Load 90 amps
Continous Load 83 amps
Load Amperage at 208 volts---
Maximum Load 52 amps
Continous Load 48 amps
Load Amperage at 240 volts---
Maximum Load 45 amps
Continous Load 41 amps
Load Amperage at 277 volts---
Maximum Load 39 amps
Continous Load 36 amps
Load Amperage at 480 volts---
Maximum Load 23 amps
Continous Load 21 amps



Model Number 05515
Engine -
Type Kubota V1703MBG
Full Pressure Lubrication Standard
RPM 1800
Cylinders 3
Fuel Diesel
Cooling System Liquid-cooled
Starting System Electric



Model Number 05515
Consumption -
Consumption at 1/2 load 1.0 gallons/hour
Consumption at 3/4 load 1.3 gallons/hour
Consumption at full load 1.6 gallons/hour



Model Number 05515
Dimensions -
Length 46 inches
Width 30 inches
Height 31 inches
Dry weight 749 lbs


Manufacturer's suggested retail price...$8,995
