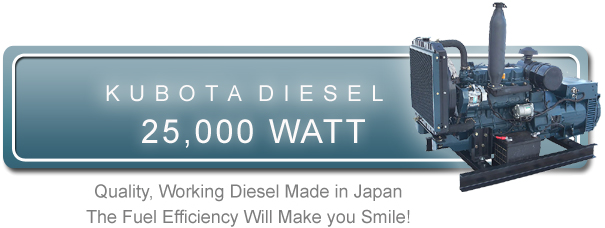

Kubota 25,000 Watt Diesel Generator

HEAVY-DUTY DIESEL GENERATORS (NOT TIER 4 FINAL)

Heavy-duty, 1800 RPM diesel generators. Compliant for applications that only operate upon
the loss of a normal power source such as utility.

Kubota Powered 25 kW Diesel Generator - Whether for a work site, cabin, lodge, or standby emergency power, this Kubota diesel will do the job every day. Day after day. This unit operates at 1800 RPM and runs smooth and quiet with its residential-grade muffler, acoustic dampening air intake system and 4 point vibration mounts.

This unit features a Kubota V3300, 4 cylinder diesel engine, cast iron crankcase with replaceable wet-type cylinder liners, full flow lube oil filteration, brushless generator with AVR, liquid cooling, +/- 1% AC voltage regulation to protect your electronics, oil & water safety shutdowns, high volume air filter, steel skid base, muffler for quiet operation, glow plugs, turn-key start and hour meter.

HEAVY-DUTY DIESEL GENERATORS (NOT TIER 4 FINAL)

Compliant for applications that only operate upon the loss of a normal power source such as utility or mains grid.

Options	Price
Two-Wire Auto Start	+ $799
45 Gallon Subbase Fuel Tank	+ $2295
60 Gallon Subbase Fuel Tank	+ $2375
100 Gallon Subbase Fuel Tank	+ $2575

Generator
Automatic Voltage Regulation	Standard
Is this unit suitable for powering sensitive electronic equipment like a lap top computer?	YES - %1 regulation from no load to full load.
Power Single-Phase
Maximum Output	26,500 Watts
Continuous Output	25,000 Watts
Load Amperage at 120 V
Maximum Load	221 amps
Continuous Load	208 amps
Load Amperage at 240 V
Maximum Load	110 amps
Continuous Load	104 amps
Sound Level at Full Load	74 decibels

Engine
Model	Kubota V3300
Type	Vertical In-Line
Horsepower	48 HP
Oil Capacity (w/ Oil Filter)	Approx. 11.1 qts
RPM	1800
Cylinders	4
Cylinder Block	Cast Iron w/ Cast Iron Sleeves
Bore & Stroke	3.86 x 4.33 in.
Cooling	Liquid-Cooling, Pushor Fan
Coolant Capacity	Approx. 11.4 Qts
Fuel	No. 2 Diesel
Electric Fuel Pump	12 V - Standard
Cold Weather Starting Aid	Glow Plugs
Starting System	Electric

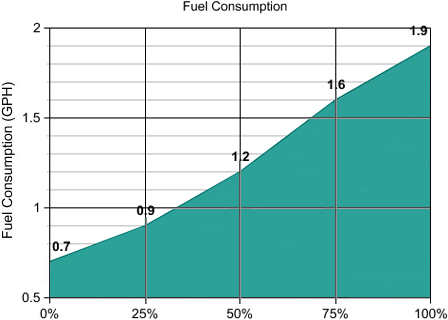

Consumption
Consumption at 1/2 Load	1.2 gallons/hour
Consumption at 3/4 Load	1.6 gallons/hour
Consumption at Full Load	1.9 gallons/hour

Control Panel
Turn-Key Start	Standard
Hour Meter	Standard
Water Temperature Shutdown	Standard
Oil Pressure Shutdown	Standard

Installation Data
Fuel Inlet Hose Size	3/8"
Fuel Return Hose Size	5/16"
Minimum Power Lead Size	1/0 AWG
No. Power Lead Conductors	4
Exhaust Outlet	2" OD Muffler Outlet
Coolant Recommendation	Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions (L x W x H)	22-3/4" x 9-1/2" x 24"
Fuel Inlet & Return Location	Left-Side
Exhaust Direction (Facing Radiator)	Right-Side
Power Output Location (Facing Radiator)	Back-Side
Service Points (Facing Radiator)	Oil Fill: Left-Side Oil Drain: Left-Side Air Filter: Left-Side Oil Filter: Left-Side Fuel Filter: Left-Side
Battery Type	12 VDC - 575 CCA
Engine Oil Type	SAE 15W-40

Maintenance Schedule
Replace Oil Filter	500 hours / 12 months
Replace Fuel Filter	500 hours / 12 months
Replace Air Filter	500 hours / 12 months
Replace Engine Coolant	500 hours / 12 months
Exercise Generator Under Load	Twice each month
Change Oil	500 hours / 12 months

Warranty
Engine Warranty	3 Years
Generator Warranty	1 Year

Dimensions
Length	57"
Width	26-1/2"
Height	40"
Weight	1800 lbs
