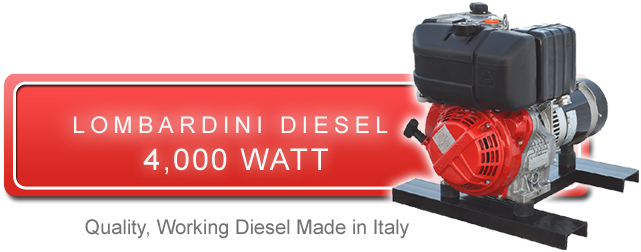

Lombardini 4,000 Watt Diesel Generator - This quality, working diesel is suitable for standby power or emergency use and has plenty of power to run your home, job site or business. The generator's simple, compact design allows for easy installation in a variety of applications requiring a small footprint and can be anchored to a concrete pad or operated free standing. 0.24 GPH at 1/2 Load
The smallest air-cooled diesel engine we've seen. This brand new unit features a 7.5 HP Lombardini direct injection engine by Kohler. This genset is equipped with a "computer safe" generator, fuel tank, muffler low oil shutdown, receptacle panel with 120/240 V output, voltmeter and is recoil start.
|
| Options |
Price |
| 18 Gallon External Fuel Tank |
+ $375 |
|
. |
| Generator |
|
| Power Single-Phase |
|
| Maximum Output |
4,000 Watts |
| Continuous Output |
3,750 Watts |
| Load Amperage at 120 V |
|
| Maximum Load |
33 amps |
| Continous Load |
31 amps |
| Load Amperage at 240 V |
|
| Maximum Load |
16.5 amps |
| Continous Load |
15.6 amps |
|
|
. |
| Engine |
|
| Type |
Lombardini 15LD350 |
| Power |
7.5 HP |
| Oil Capacity |
Approx. 1.2 Qts |
| Low Oil Shutdown |
Standard |
| Exhaust Outlet |
1" OD Muffler Outlet |
| Cooling System |
Air-Cooled |
| Fuel |
Diesel |
| Starting System |
Recoil |
|
| Consumption |
|
| Consumption at 1/2 load |
0.26 GPH |
| Consumption at 3/4 load |
0.32 GPH |
| Consumption at full load |
0.37 GPH |

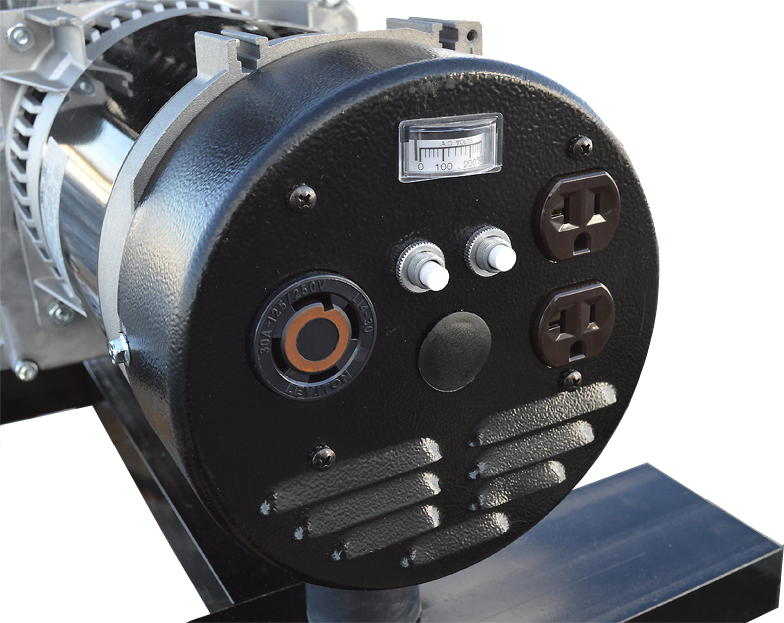

| Power Output Panel |
|
| Voltmeter |
Standard |
| 120 V Duplex NEMA#5-20R |
2-20 Amp |
| 120/240 V NEMA#L14-30R |
1-30 Amp |
| Installation Data |
|
| Exhaust Outlet |
1" OD Muffler |
Exhaust Location & Direction
(Facing Engine) |
Right-Side |
Service Points
(Facing Engine) |
Oil Fill: Right-Side
Air Filter: Front-Side |
Power Output Location
(Facing Engine) |
Back-Side |
| Minimum Cord Size |
0-50 Feet: 10 AWG
51-100 Feet: 8 AWG |
| Engine Oil Type |
15W-40 |
| Warranty |
|
| Engine Warranty |
1 Year |
| Generator Warranty |
1 Year |
| 100% Coverage for Parts & Labor |
Standard |
| Dimensions |
|
| Length |
26" |
| Width |
19" |
| Height |
19-3/4" |
| Weight |
175 lbs |
|
