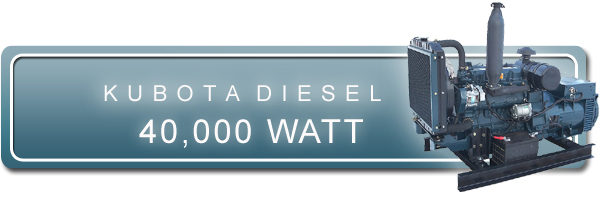

Kubota 40 kW Diesel Generator

HEAVY-DUTY DIESEL GENERATORS (NOT TIER 4 FINAL)

Heavy-duty, 1800 RPM diesel generators. Compliant for applications that only operate upon
the loss of a normal power source such as utility.

Kubota Powered 40 kW Diesel Generator - Whether for a work site, cabin, lodge, or standby emergency power, this Kubota diesel will do the job every day. Day after day. This unit operates at 1800 RPM and with its quiet muffler, acoustic dampening air intake system and 4 point vibration mounts, this set runs smooth and quiet.

Continuous Duty.
Built to run 24 hours a day.

This unit features a Kubota V3600T, turbocharged 4 cylinder diesel engine, cast iron crankcase with replaceable wet-type cylinder liners, full flow lube oil filteration, brushless generator with AVR, liquid cooling, +/- 1% AC voltage regulation to protect your electronics, oil & water safety shutdowns, high volume air filter, heavy steel skid base, muffler for quiet operation, glow plugs, turn-key start and hour meter.

Options	Price
1 Phase Generator End	+ $599
45 Gallon Subbase Fuel Tank	+ $2295
60 Gallon Subbase Fuel Tank	+ $2395
100 Gallon Subbase Fuel Tank	+ $2795
Sound Proof Enclosure	+ $3595

Generator

Automatic Voltage Regulation			Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer?			Yes - 1% regulation from no load to full load.
Maximum Output			45,000 watts
Continous Output			39,200 watts
Load Amperage at 120 volts			---
Maximum Load			375 Amps
Continous Load			326.6 Amps
Load Amperage at 240 volts			---
Maximum Load			188 Amps
Continous Load			163.3 Amps
Sound Level @ 23 ft(7 m)			75 dB(A)

Engine

Model			Kubota V3600TBG
Type			Vertical In-Line, Turbocharged
Horsepower			57 HP
Oil Capacity (w/ Oil Filter)			Approx. 11.1 qts
RPM			1800
Cylinders			4
Cylinder Block			Cast Iron w/ Cast Iron Sleeves
Bore & Stroke			3.86 x 4.72 in.
Cooling			Liquid-Cooling, Pushor Fan
Coolant Capacity			Approx. 11.4 Qts
Fuel			No. 2 Diesel
Electric Fuel Pump			12 V - Standard
Cold Weather Starting Aid			Glow Plugs
Starting System			Electric

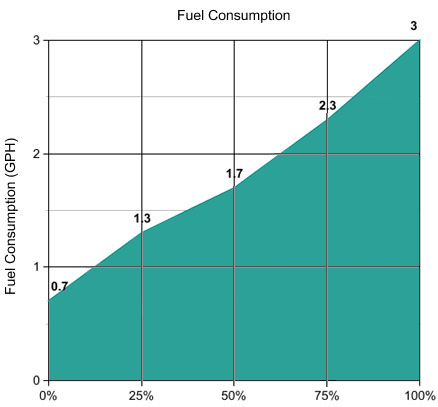

Consumption

Consumption at 1/2 load			1.7 gallons/hour
Consumption at 3/4 load			2.3 gallons/hour
Consumption at full load			3 gallons/hour

Control Panel

Turn-Key Start			Standard
Hour Meter			Standard
Water Temperature Shutdown			Standard
Oil Pressure Shutdown			Standard

Installation Data

Fuel Inlet Hose Size			3/8"
Fuel Return Hose Size			5/16"
Minimum Power Lead Size			2/0 AWG
No. Power Lead Conductors			4
Exhaust Outlet			2" OD Muffler Outlet
Coolant Recommendation			Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions (L x D x H)			22-3/4" x 9-1/2" x 24"
Fuel Inlet & Return Location (Facing Radiator)			Left-Side
Exhaust Direction (Facing Radiator)			Left-Side
Power Output Location (Facing Radiator)			Back-Side
Service Points (Facing Radiator)			Oil Fill: Left-Side Oil Drain:Left-Side Air Filter: Left-Side Oil Filter: Left-Side Fuel Filter: Left-Side
Battery Type			12 VDC - 575 CCA
Engine Oil Type			SAE 15W-40

Maintenance Schedule

Replace Oil Filter			500 hours / 12 months
Replace Fuel Filter			500 hours / 12 months
Replace Air Filter			500 Hours / 12 months
Exercise Generator Under Load			Twice each month
Change Oil			500 hours / 12 months

Warranty

Engine Warranty			3 Years
Generator Warranty			1 Year
100% Coverage for Parts & Labor			Standard

Dimensions

Length			60"
Width			24-1/2"
Height			40"
Dry weight			1950 lbs
