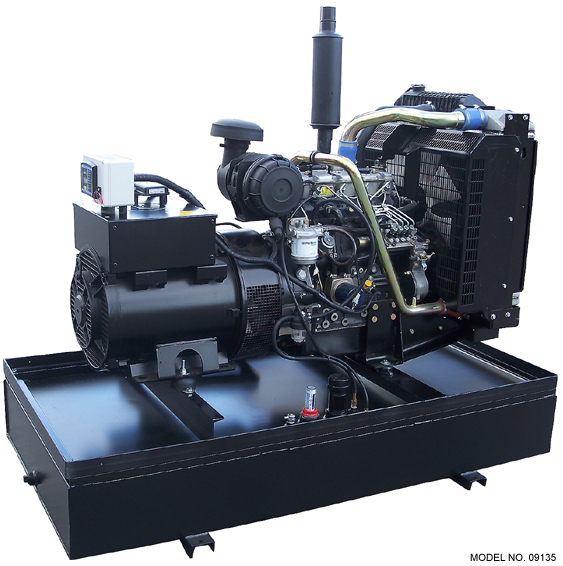

Perkins 55 kW Diesel Generator

Perkins 55 kW Diesel Generator - This smooth, quiet 1800 RPM diesel genset has plenty of power to run your house, business or off-the-grid hunting cabin.

Perkins 1104D-44T
Built to run 24 hours a day.

This unit features an in-line, 4 cycle Perkins 1104D-44TG1 diesel engine with Tier 3 emissions rating, turbocharged aspiration, cast iron crankcase with replaceable wet-type cylinder liners, full flow lube oil filteration, brushless generator end (fan-cooled), solid state automatic voltage regulator for powering sensitive electronics, extended 500-hour oil change and filter interval, single-side service points, liquid cooling, replaceable foam air filter element, heavy steel skid base, muffler for quiet operation, glow plugs, turn-key start and hour meter.

Options	Price
Sound Enclosure	+ $3595
100 Gallon Subbase Fuel Tank	+ $2575
250 Gallon Subbase Fuel Tank	+ $2875
Two-Wire Auto Start	+ $799

Generator

Power Single-Phase			---
Automatic Voltage Regulation			Standard
Is this unit suitable for powering sensitive electronic equipment like a laptop computer?			Yes - 1% regulation from no load to full load.
Power Single-Phase			---
Maximum Output			55,000 watts
Continous Output			50,000 watts
Load Amperage at 120 volts			---
Maximum Load			458 Amps
Continous Load			417 Amps
Load Amperage at 240 volts			---
Maximum Load			229 Amps
Continous Load			208 Amps
Sound Level @ 23 ft(7 m)			74 dB(A)

Engine

Type			Perkins 1104D-44TG1
Cylinders			4
Operating RPM			1800 RPM
Horsepower			84 HP
Cylinder Block			Cast Iron Block w/ Cast Iron Sleeve
Bore & Stroke			4.13" x 5.00"
Displacement			4.4 Liters
Aspiration			Turbocharged
Air Cleaner			Heavy Duty Replaceable Dry Element
Oil Capacity (w/ Oil Filter)			8.8 qts.
Recommended Engine Oil			SAE 15W-40
Exhaust Outlet			2.5" OD Muffler Outlet
Governor			Mechanical Governor
Coolant Capacity			Approx. 13.9 Qts
Cooling Fan			Pusher Type
Battery Charging Alternator			Standard - 90 Amps
Cold Weather Starting Aid			Glow Plugs
Fuel			Diesel
Starting System			Electric

Consumption

Consumption at 1/2 load			2.3 gal/hr
Consumption at 3/4 load			3.3 gal/hr
Consumption at full load			4.3 gal/hr

Control Panel

Key Start			Standard
Hour Meter			Standard
Glow Plug Light			Standard
Circuit Breaker			10 Amps - Resetable

Installation Data

Fuel Inlet Hose Size			3/8"
Fuel Return Hose Size			5/16"
Minimum Power Lead Size			3/0 AWG
No. Power Lead Conductors			4
Exhaust Outlet			2" OD Muffler Outlet
Coolant Recommendation			Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions (L x D x H)			22-3/4" x 9-1/2" x 24"
Fuel Inlet & Return Location (Facing Radiator)			Left-Side
Exhaust Direction (Facing Radiator)			Right-Side
Power Output Location (Facing Radiator)			Back-Side
Service Points (Facing Radiator)			Oil Fill: Left-Side Oil Drain:Left-Side Air Filter: Left-Side Oil Filter: Left-Side Fuel Filter: Left-Side
Battery Type			12 VDC - 575 CCA - Not Included
Engine Oil Type			SAE 15W-40

Warranty

Worldwide Support Network			4,000 Service Locations
Engine Warranty			1 Year
Generator Warranty			1 Year
100% Coverage for Parts & Labor			Standard

Dimensions

Length			63"
Width			24-1/2"
Height			45"
Dry weight			2,035 lbs
