Perkins 12 kW Diesel Generator

Perkins 12.5 kW Diesel Generator - This Perkins diesel generator is suitable for continous use or emergency power and has plenty of power to your home, job site or business. This unit operates at 1800 RPM and with its critical exhaust silencer, deep stiff crankcase, isolated valve cover and 4 point vibration mounts, this set runs smooth and quiet.

Like all Central Maine Diesel products, this generator is fully customizable. From enclosure to fuel tank to controls to trailer, you choose the option that is right for you! And, as an added benefit, you will always have the flexibility to upgrade options later.

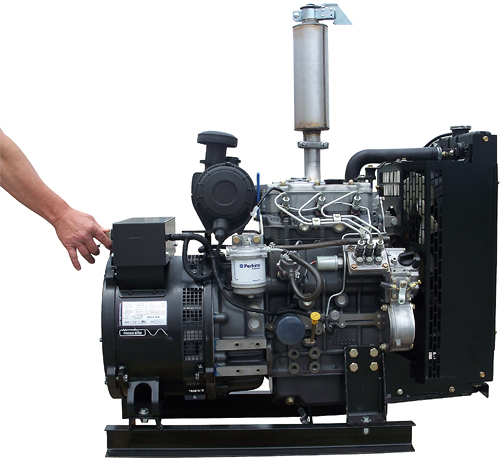

This unit features a Perkins 1.5L in-line 3-cylinder diesel engine, indirect injection for increased fuel efficiency, low heat rejection and quicker starts, brushless generator end, cool flow radiator w/ fan guards, residential grade muffler, automatic voltage regulation, high volume air filter, control panel w/ hour meter and automatic safety shutdowns for low oil pressure and high water temperature.

Options	Price
Sound Proof Enclosure	+ $3275
100 Gallon Subbase Fuel Tank	+ $2575
250 Gallon Subbase Fuel Tank	+ $2875
Single-Axle Trailer	+ $3095

Generator

Maximum Output			12,500 watts
Continous Output			12,000 watts
Power One-Phase			MLS4-Y
Load Amperage at 120 volts			---
Maximum Load			104 Amps
Continous Load			100 Amps
Load Amperage at 240 volts			---
Maximum Load			52 Amps
Continous Load			50 Amps
Sound Level @ 23 ft(7 m) at full load			72 dB(A)

Engine

Model			Perkins 403D-15G
Combustion System			Direct Injection
Operating RPM			1800
Number of Cylinders			3
Cylinder Arrangement			Vertical in-line
Cycle			4 stroke
Cylinder Block			Cast Iron Block w/ Cast Iron Sleeve
Bore & Stroke			3.31" x 3.54"
Displacement			1496 cc
Compression Ratio			22.5:1
Exhaust Outlet			2" OD Muffler Outlet
Oil Capacity (w/ Oil Filter)			8 Qts
Cooling			Water-Cooled
Coolant Capacity			Approx. 6.5 Qts
Fuel			No. 2 Diesel
Electric Fuel Pump			12 V - Standard
Fuel/Water Seperator			Standard
Starting System			Electric

Consumption

Consumption at 1/2 load			0.58 gallons/hour
Consumption at 3/4 load			0.79 gallons/hour
Consumption at full load load			0.97 gallons/hour

Control Panel

Turn Key Start			Standard
Hour meter			Standard
Oil Pressure Shutdown			Standard
Engine Overspeed Shutdown			Standard
High Temperature Shutdown			Standard

Installation Specifications

Fuel Inlet Hose Size			3/8"
Fuel Return Hose Size			5/16"
Power Lead Size			No. 4 AWG
Exhaust Outlet			2" OD Muffler Outlet
Coolant Recommendation			Mixture: 1/2 Anti-Freeze & 1/2 Water
Radiator Dimensions (L x D x H)			14-1/2" x 7-3/4" x 21"
Service-Side Direction (Facing Radiator)			Left-Side
Exhaust Direction (Facing Service Side)			Back-Side
Fuel Inlet & Return Location (Facing Service Side)			Inlet: Front-Side Outlet: Front-Side
Power Output Direction (Facing Service Side)			Left-Side
Battery Type			12 VDC - 575 CCA - Not Included
Engine Oil Type			10W-40 Synthetic

Warranty

Engine Warranty			1 Years
Generator Warranty			1 Years
100% Coverage for Parts & Labor			Standard

Dimensions

Length			40 inches
Width			14-1/2 inches
Height			33 inches
Dry weight			775 lbs
